ISO18000-6C Gen2 Higgs-3 9662 RFID UHF Tag

ISO18000-6C Gen2 Higgs-3 9662 RFID UHF Tag

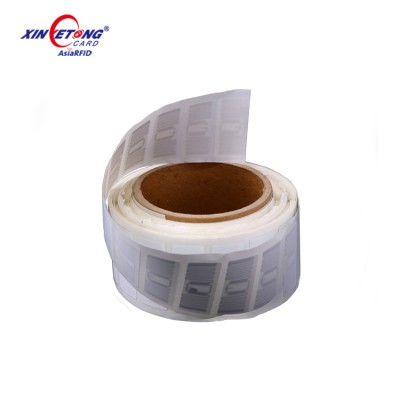

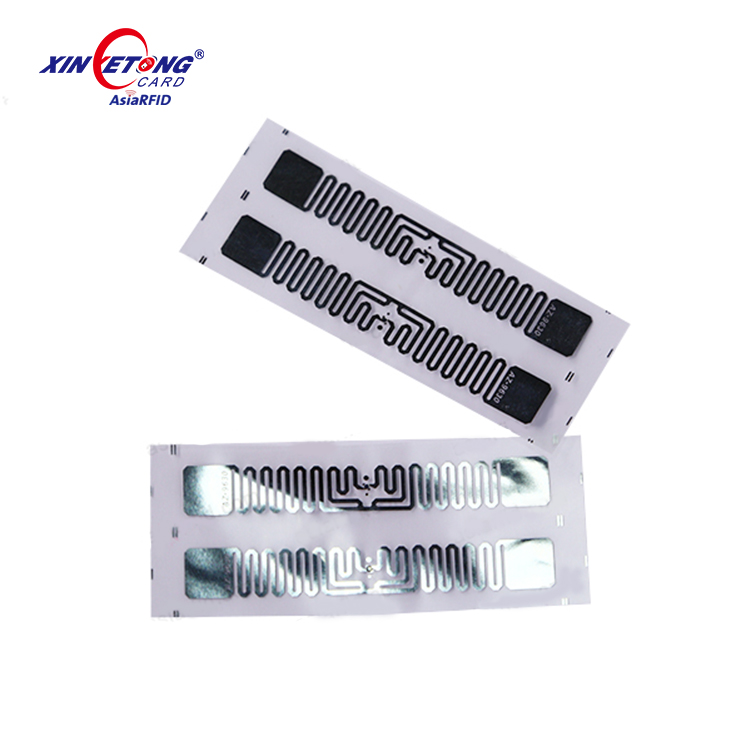

ISO1800-6C Gen2  Alien H3 9662 UHF RFID Dry Inlay

Chip: Alien H3

Antenna size:70x17MM

Tag's size: 80x25MM/73x20MM or Customzied size

Distance: 6M

More chip available: Alien H3 MonzaR6, Monza  4D,4E,4QT,Monza5

Specification:

Meets EPCglobal Gen2 (V 1.2.0) as well as

ISO/IEC 18000-6C

 Worldwide operation in the RFID UHF bands

(860-960 MHz)

 800-Bits of Nonvolatile Memory

 96-EPC Bits, extensible to 480 Bits

 512 User Bits

 64 Bit Unique TID

 32 Bit Access and 32 bit Kill Passwords

 Pre-Programmed with a unique, unalterable 64-bitserial number

 User Memory can be Block Perma-Locked as well as read password protected in 64 Bit Blocks

 Supports all Mandatory and Optional Commands including Item Level Commands

 Custom Commands for high speed programming;

30 tags per second for the 96-bit EPC number

 Low power operation for both read and program

 Exceptional operating range, up to 10m with appropriate antenna

Applications

 Supply Chain Management

Distribution Logistics

 Product Authentication

 Asset Inventory and Tracking

 Baggage Handling and Tracking

 Item Level Tagging
